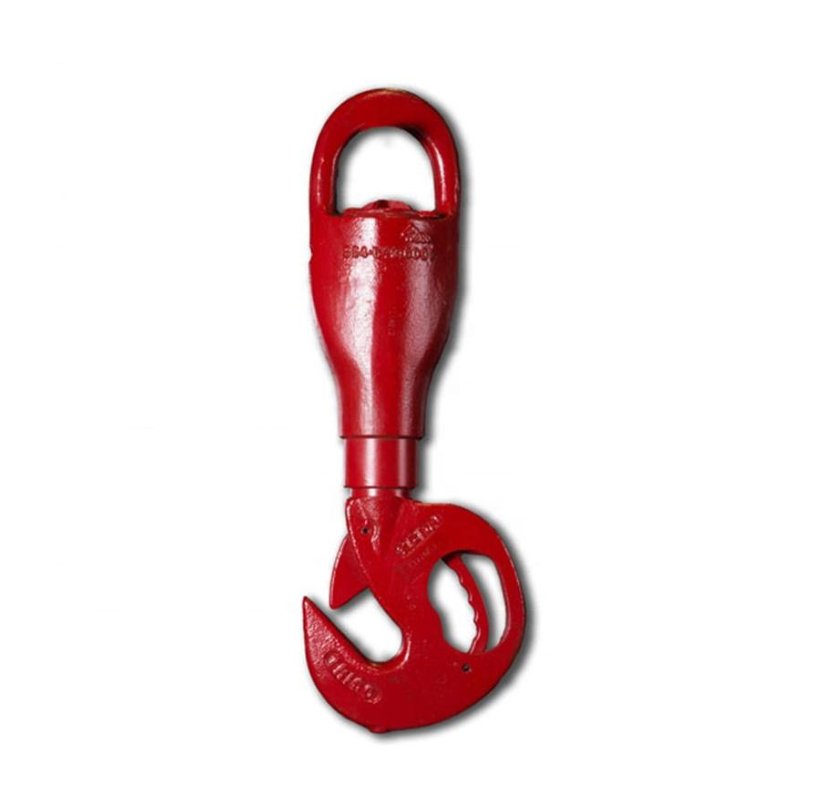

Janki Oil Tools sucker rod handling tools are robust and reliable tools specifically designed to efficiently handle sucker rods while tripping in and tripping out them of an oil well. The sucker rod handling tools such as hooks, elevators and wrenches are designed and manufactured strictly in accordance with the API 8C specification.
Model | Rated Capacity (Tons) |
---|---|
SRH-20 | 20 |
SRH-25 | 25 |

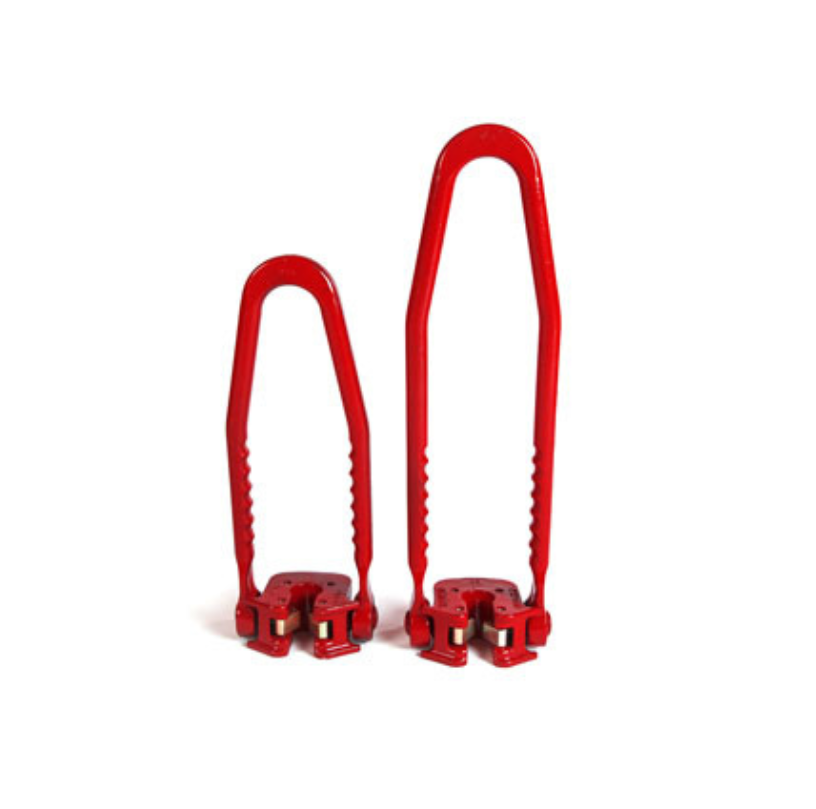

Model | Size in Inches | Rated Capacity (Short Tons) |
---|---|---|
JOTSRE-20 | 1/2" 5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-1/2" |
20 ton |
JOTSRE-25 | 5/8" 3/4" 7/8" 1 |
25 ton |

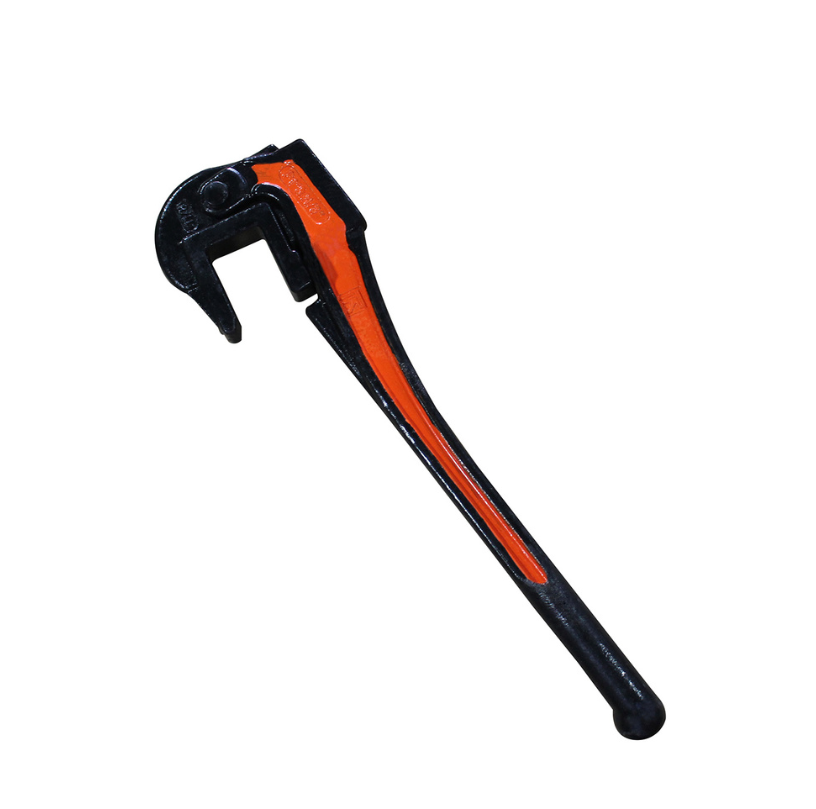

Model | Sucker Road Size in Inches | Square Neck Width in Inches |
---|---|---|
JOTSRW-1 | 5/8" | 7/8" |
JOTSRW-2 | 3/4" & 7/8" | 1" |
JOTSRW-3 | 1" | 1-5/16" |
JOTSRW-4 | 1-1/8" | 1-1/2" |
