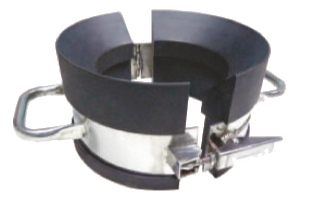

Janki Oil Tools stabbing guide are robust and reliable tools specifically designed to align two joints of drill pipe, casing or tubing. Consistent alignment increases the speed of connections and reduces thread-related downtime. The stabbing guide also enhances pipe-handling safety for drill-floor personnel by decreasing the risk of damage to the tubular connection threads, bail arms or single joint elevator, which could easily result in dropped objects from the derrick.
Stabbing Guide for Tubular & Casing
| JOT - SG Model | Applicable Dia. for Tubular & Casing |
|---|---|
| JOT-SGT 2-3/8" | 2-3/8" Tubing |
| JOT-SGT 2-7/8" | 2-7/8" Tubing |
| JOT-SGT 3-1/2" | 3-1/2" Tubing |
| JOT-SGT 4" | 4" Tubing |
| JOT-SGT 4-1/2" | 4-1/2" Tubing |
| JOT-SGC 4-1/2" | 4-1/2" Casing |
| JOT-SGC 5" | 5" Casing |
| JOT-SGC 5-1/2" | 5-1/2" Casing |
| JOT-SGC 6" | 6" Casing |
| JOT-SGC 6-5/8" | 6-5/8" Casing |
| JOT-SGC 7" | 7" Casing |
| JOT - SG Model | Applicable Dia. for Tubular & Casing |
|---|---|
| JOT-SGC 7-3/8" | 7-8/8" Casing |
| JOT-SGC 8-5/8" | 8-5/8" Casing |
| JOT-SGC 9-5/8" | 9-5/8" Casing |
| JOT-SGC 10-3/4" | 10-3/4" Casing |
| JOT-SGC 11-3/4" | 11-3/4" Casing |
| JOT-SGC 13-3/8" | 13-3/8" Casing |
| JOT-SGC 13-5/8" | 13-5/8" Casing |
| JOT-SGC 14" | 14" Casing |
| JOT-SGC 16" | 16" Casing |
| JOT-SGC 18-5/8" | 18-5/8" Casing |
| JOT-SGC 20" | 20" Casing |
Stabbing Guide for Drill Pipe
| JOT - SG Model | Drill Pipe Size | Tool Joint Size |
|---|---|---|
| JOT-SGD 3-1/2" | 3-1/2" | 4-3/4" |
| JOT-SGD 3-1/2" | 3-1/2" | 4-7/8" |
| JOT-SGD 3-1/2" | 3-1/2" | 5" |
| JOT-SGD 4" | 4" | 4-3/4" |
| JOT-SGD 4" | 4" | 4-7/8" |
| JOT-SGD 4" | 4" | 5" |
| JOT-SGD 4-1/2" | 4-1/2" | 5-1/4" |
| JOT-SGD 4-1/2" | 4-1/2" | 6-1/4" |
| JOT-SGD 5" | 5" | 6-1/2" |
| JOT - SG Model | Drill Pipe Size | Tool Joint Size |
|---|---|---|
| JOT-SGD 5" | 5" | 6-5/8" |
| JOT-SGD 5-1/2" | 5-1/2" | 6-5/8" |
| JOT-SGD 5-1/2" | 5-1/2" | 7" |
| JOT-SGD 5-1/2" | 5-1/2" | 7-1/8" |
| JOT-SGD 5-1/2" | 5-1/2" | 7-1/4" |
| JOT-SGD 5-1/2" | 5-1/2" | 7-1/2" |
| JOT-SGD 5-7/8" | 5-7/8" | 7" |
| JOT-SGD 6-5/8" | 6-5/8" | 8" |
| JOT-SGD 6-5/8" | 6-5/8" | 8-1/2" |
Stabbing Guide for Drill Collar
| JOT - SG Model | Applicable Dia. for Drill Collar |
|---|---|
| JOT-SGDC 3-1/8" | 3-1/8" |
| JOT-SGDC 3-1/2" | 3-1/2" |
| JOT-SGDC 4-1/8" | 4-1/8" |
| JOT-SGDC 4-3/4" | 4-3/4" |
| JOT-SGDC 5" | 5" |
| JOT-SGDC 6-1/4" | 6-1/4" |
| JOT - SG Model | Applicable Dia. for Drill Collar |
|---|---|
| JOT-SGDC 6-1/2" | 6-1/2" |
| JOT-SGDC 6-3/4" | 6-3/4" |
| JOT-SGDC 8" | 8" |
| JOT-SGDC 8-1/4" | 8-1/4" |
| JOT-SGDC 9-1/2" | 9-1/2" |
| JOT-SGDC 11" | 11" |
