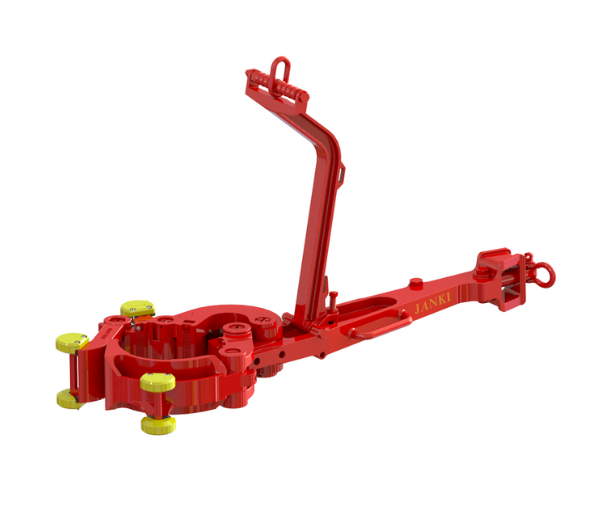

Manual Tongs

Janki Oil Tools manual tongs are robust and reliable tools designed to handle various tubular sizes with ease. With their excepgonal torque capacity and interchangeability lug jaws, they offer versaglity and efficiency in tubular handling operagons. Janki Oil Tools make Manual Tong are made from high grade of alloy steel duly harden and tempered with a controlled hardness and dully magnegc pargcle inspected.

JOT Manual Tong JOTMT-16 (16,000 ft-lbs)

  • Torque capacity: Up to 16,000 ft-lbs.
  • Ideal for handling tubulars ranging from 2-3/8” to 7”.
  • Interchangeable lug jaws enable efficient handling of various tubular sizes.
JOTMT-16
Latch Lug Jaw No. Hinge Pin Hole No. Size Range in Inches Torque
1 1 2-3/8 - 3-1/2 16,000 ft-lbs
2 3-1/2 - 5
3 4-3/4 - 6-1/4
4 5-3/4 - 7

JOTMT-35 (35,000 ft-lbs)

  • Torque capacity: upto 35,000 Ft-lbs.
  • Ideal for handling tubular ranging from 2-3/8” to 10-3/4”.
  • Interchangeable lug jaws enable efficient handling of various tubular sizes.
JOTMT-35
Latch Lug Jaw No. Short Jaw Assembly No. Hinge Jaw No. Size Range Torque
1 1 - 2-3/8" - 3.668" 35000 Ft-lbs
2 1 2-7/8" - 4-1/4"
3 1 3-1/2" - 5-1/4"
4 1 5-1/4" - 7"
5 2 1 7" - 8-5/8"
6 2 2 9-5/8" - 10-3/4"

JOTMT-55 (55000 Ft-lbs)

  • Torque capacity upto 55,000 Ft-lbs.
  • Ideal for handling tubular ranging from 3-1/2” to 13-3/8”.
  • Interchangeable lug jaws enable efficient handling of various tubular sizes.
JOTMT-55
Latch Lug Jaw No. Latch Step Size Range Torque
1 1 3-1/2" - 4-1/8" 55000 Ft-lbs
2 4-1/8" - 5"
2 1 4-1/4" - 5-1/4"
2 5" - 5-3/4"
3 6" - 6-3/4"
3 1 6-5/8" - 7-1/4"
2 7-3/8" - 8"
3 8-1/2" - 9"
4 1 9" - 9-5/8"
2 10-5/8" - 10-3/4"
5 1 11-3/4"
6 1 12-3/4" - 13"
7 1 13-3/8"

JOTMT-65 (65000 Ft-lbs)

  • Torque capacity upto 65,000 Ft-lbs.
  • Designed for handling tubular sized from 3-1/2” to 17”.
  • Interchangeable lug jaws enable efficient handling of various tubular sizes and ensure o mal grip and control during operagon.
JOTMT-65
Latch Lug Jaw No. Hinge Pin Hole No. Size Range Torque
1 1 3-1/2" - 4-1/2" 65000 Ft-lbs
4-1/2" - 6"
2 5"-7"
3 6" - 8-1/4"
2 1 8" - 9-5/8"
2 10-5/8" - 11-1/4"
3 1 11-3/4" - 12-3/4" 40000 Ft-lbs
2 13-3/8" - 14-3/8"
4 2 16"-17"

JOTMT-100 (100000 Ft-lbs)

  • Torque capacity: up to 100000 Ft-lbs.
  • Suitable for handling tubular ranging from 4” to 17”.
  • Interchangeable lug jaws provide versaglity in tubular handling applicagons.
JOTMT-100
Latch Lug Jaw No. Hinge Pin Hole No. Size Range Torque
1 1 4" - 5-1/2" 100000 Ft-lbs
5-1/2" - 5-3/4"
2 5-1/2" - 6-5/8"
6-1/2" - 7-1/4"
3 6-5/8" - 7-5/8"
7-3/4" - 8-1/2"
2 1 8-1/2" - 9"
9-1/2" - 10-3/4"
2 10-3/4" - 12"
3 1 12" - 12-3/4" 75000 Ft-lbs
2 13-3/8" - 15"
4 2 15-3/4" 100000 Ft-lbs
5 2 16" - 17" 60000 Ft-lbs
