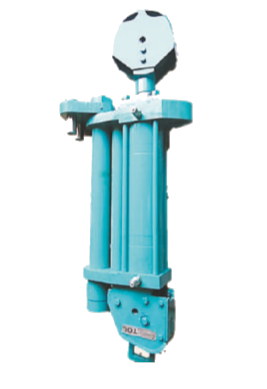

Janki Oil Tools hydraulic cathead/ ezy torque are robust and reliable equipment designed to handle various tong sizes with ease. The hydraulic cathead/ ezy torque is designed to deliver high torque levels to the tongs, facilitating the precise application of force needed to either tighten or loosen connections on drill pipes. Suitable for use in both offshore and onshore environments, the hydraulic cathead/ ezy torque is robustly constructed to withstand the harsh conditions encountered in drilling operations, including exposure to extreme weather and corrosive elements.

Features

• Self contained unit with hydraulic power and control unit suitable for safe operation.
• Precise pressure control enables continuous makeup capability.
• Hydraulic operation of remote control module eliminates electrical hazards.
• Simple hydraulic circuit ensures trouble free performance.
• 90° angle between pull line and torque arm.
• Positive displacement, tande pump provides efficient and steady hydraulic energy.
• Control module enables remote pressure regulation and cylinder operation. Cylinder is mounted with the anchor adapted block.

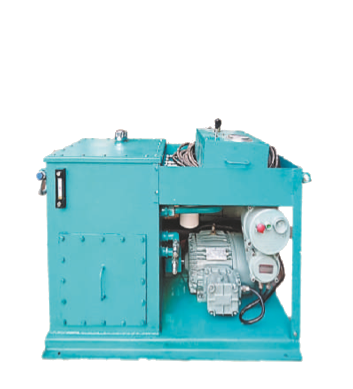

• Contains flame proof and explosion proof induction motor (10 HP, 1725- 1760 RPM, 460 Volts, 60 Hz) to run hydraulic pump.
• Protection cover to protect electrical system from weather conditions, operational situation and hydraulic fluid from contamination.
• Tested at 3000 psi.

Technical specification.
