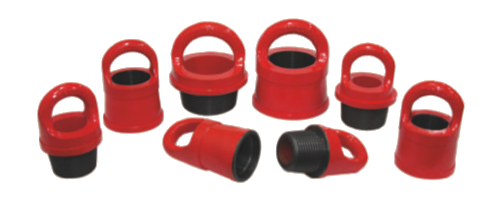

Lifting Bail / Cap

Janki Oil Tools butterfly valves and ball valves are robust and reliable valves specifically designed to regulate flow in pipelines. Today Janki Oil Tools is a widely recognized leader in manufacturing and exporting of superior quality industrial valves for a wide range of applications.

Lifting Bails for Drill Pipes & Drill Collars

OD Range Connection Size & Type Standard Pin Protector Weight Standard Box Protector Wight Standard Wight Per Set
lb lb lb
3-1/8" - 3-1/2" NC 23 6 6 12
2-3/8" Reg 6 6 12
NC 26 2-3/8" IF 6 6 12
2-7/8" PAC 6 6 12
4-1/2" - 4-3/8" NC 31 2-7/8" IF 9 9 18
2-7/8" XH 9 9 18
3-1/2" Reg 10 10 20
4-1/2" - 5-1/8" 35 12 10 22
NC 38 3-1/2" IF 12 10 22
3-1/2" XH 12 10 22
5" - 5-3/4" NC 40 5" FH 17 17 34
5-3/4" - 6-1/4" 4-1/2" Reg 15 17 32
4-1/2" FH 15 17 32
6-1/4" - 6-3/4" NC 46 4" IF 16 21 37
4-1/2" H90 16 21 37
6-3/4" - 7-1/4" NC 50 4-1/2" IF 15 21 36
5-1/2" Reg 31 27 58
5-1/2" H90 30 27 57
7-1/4" - 8-1/4" 5-1/2" FH 30 28 58
6-5/8" Reg 27 28 55
6-5/8" H90 30 30 60
6-5/8" FH 37 37 74
8-1/4" - 9" NC 61 32 32 64
9" - 10" 7-5/8" Reg 39 33 72
7-5/8" H90 52 42 94
10" - 11" 8-5/8" Reg 50 46 96
8-5/8" H90 66 55 121
OD Range Connection Size & Type Standard Pin Protector Weight Standard Box Protector Weight Standard Weight Per Set
lb lb lb
- 2-3/8" EUE 7 7 14
- 2-7/8" EUE 7 7 14
- 3-1/2" EUE 9 9 18

Safe Working Load / Proof Load Index

Size SWL (kg) Proof Load (kg)
2-3/8” - 3-1/2” EUE (API 5B) Thread Protectors 2000 3000
2-3/8" - 2-7/8” RSC (API 7-2) Thread Protectors 3000 4500
3-1/2” RSC (API 7-2) Thread Protectors 5000 7000
4” - 5-1/2” RSC (API 7-2) Thread Protectors 7000 10000
6-5/8” - 7-5/8” RSC (API 7-2) Thread Protectors 10000 15000
8-5/8” & Above RSC (API 7-2) Thread Protectors 15000 20000
