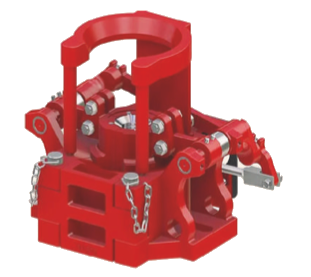

Janki Oil Tools pneumatic tubing spiders are robust and reliable equipments specifically designed to securely suspend drill pipes during tripping operations, whether tripping in or tripping out of an oil well. Suitable for a wide range of applications, including drilling, servicing, and repairing oil well. They are made strictly in accordance with the API7K specification. They are made from high grade of alloy steel duly harden and tempered with a controlled hardness and duly magnetic particle inspected.
| Model | Rated Camacity | Tubular OD (in inches) | Slip Body (in inches) |
|---|---|---|---|
| JOTC/80T | 80 tons | 1.315 - 3.1/2 | 3-1/2 |
| 3-1/2 - 4-1/2 | 4-1/2 | ||
| 4-3/4 | 14-3/4 (Integral) | ||
| 5 | 5 (Integral) | ||
| 5-1/2 | 5-1/2 (Integral) | ||
| JOTCHD/120T | 120 tons | 1.35 - 3-1/2 | 3-1/2 |
| 3-1/2 - 4-1/2 | 4-1/2 | ||
| 4-3/4 | 4-3/4 (Integral) | ||
| 5 | 5 (Integral) | ||
| 5-1/2 | 5-1/2 (Integral) | ||
| JOTE/175T | 175 tons | 2-3/8 - 3-1/2 | 3-1/2 |
| 4 - 5-1/2 | 5-1/2 | ||
| 5-1/2 - 7 | 7 | ||
| 7-5/8 | 7-5/8 (Integral) |
