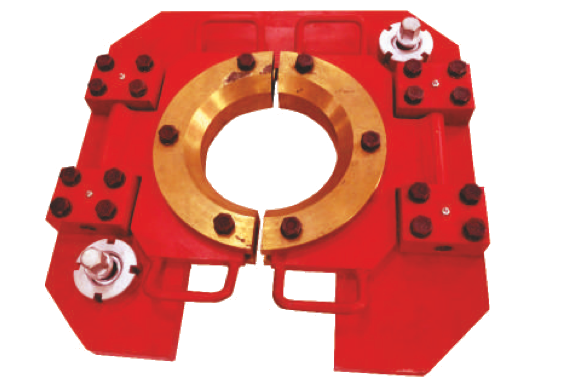

WEAR GUIDE PLATE ASSEMBLY:

JOT Manufactured Wear Guide Assembly, helps to reduce wear in Master Bushings and Bowls during drilling operations, particularly when using a top drive.The Wear Guide Assembly mounts directly in the pin drive locations on 27-1/2" and 37-1/2" Master Bushings.Locking drive pins are optional. The expendable Wear Guide Rings are available for Pipe Size 3-1/2" to 5" and 5-1/2" to 6-5/8". The wear guide ring material is designed to minimize any wear to the drill string.

WEAR GUIDE PLATE ASSEMBLY

WEAR GUIDE PLATE ASSEMBLY


PIPE SIZE GUIDE ASSY. COMPLETE SUITABLE FOR MASTER BUSHING
W/ LOCK PINS W/O LOCK PINS
3-1/2" - 5" 35761 35761-A 27-1/2" & 37-1/2" Pin Drive
5-1/2" - 6-5/8" 35762 35762-A
PIPE SIZE SPARES
WEAR GUIDE BUSH LOCK PINS BOLTS
3-1/2" to 5" 35763 35765 35766
5-1/2" to 6-5/8" 35764 35765 35766
